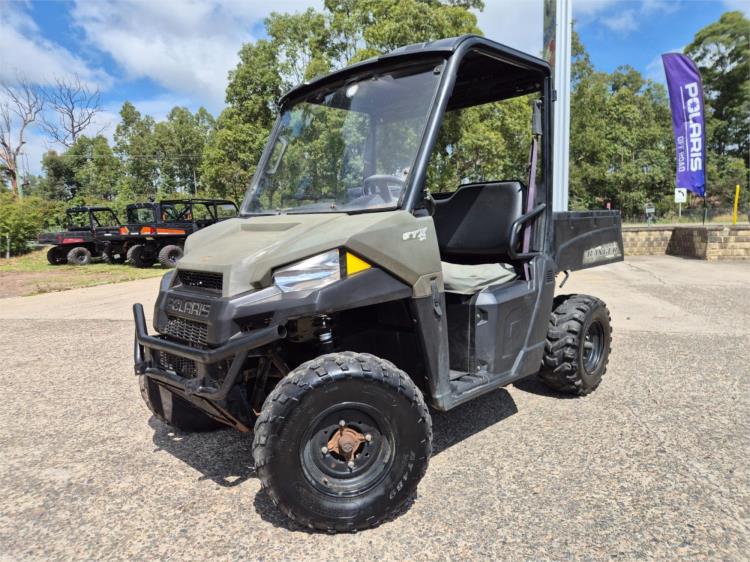

2016 Polaris Ranger ETX UTV SxS AWD - Green (USED)

Kilometres: 25,785
Hours: 2,392

ENGINE
Engine Brand Name - ProStar™
Engine Type - Single-Cylinder
Cylinders - 1
Engine Stroke - 4-Stroke
Horsepower (bhp/kW) - 31 / 29.8
Cooling - Liquid
Valves - 4
Valves Per Cylinder - 4
Valve Configuration - DOHC
Bore (mm/in) - 78 / 3.07
Stroke (mm/in) - 68 / 2.68
Displacement (cc/ci) - 325 / 19.8
Compression Ratio - 11.5:1
Starter - Electric
Fuel Requirements - Regular
Fuel Type - Gas
Fuel Injector - Yes
Fuel Injector Size (mm) - 42
Carburetor - No
Number Of Carburetors - 0
Carburetion Type - Fuel Injected

TRANSMISSION
Transmission Type - Continuously Variable (CVT)
Overdrive - No
Primary Drive (Front Wheel) - Shaft
Primary Drive (Engine / Transmission) - Belt
Reverse - Yes
Transmission Brand - Polaris Variable Transmission (PVT)
Hi / Low Range - Yes

WHEELS & TIRES
Wheels Composition - Steel
Front Tire Diameter (in) - 25
Rear Tire Diameter (in) - 25
Front Tire Width - 8
Front Wheel Diameter - 12
Rear Tire Width - 11
Rear Wheel Diameter - 12
Front Tire (Full Spec) - 25 X 8-12
Rear Tire (Full Spec) - 25 X 11-12

BRAKES
Front Brake Type - Hydraulic Disc
Rear Brake Type - Hydraulic Disc

SUSPENSION
Front Suspension Type - McPherson Strut
Front Travel (in/mm) - 9 / 229
Rear Suspension Type - Independent Double A-Arm
Rear Travel (in/mm) - 10 / 254
Rear Adjustable Shock / Spring Pre-Load - No
Number Rear Shock Absorbers - 2
Rear Suspension Material - Steel
Air Adjustable - No

TECHNICAL SPECIFICATIONS
Length (ft) - 9.17
Width (in/mm) - 58 / 1470
Height (in/mm) - 73 / 1850
Wheelbase (in/mm) - 73 / 1850
Ground Clearance (in/mm) - 10 / 254
Length (ft/ft) - 9
Length (ft/in) - 2
Dry Weight (lbs/kg) - 1045 / 474
Payload Capacity (lbs/kgs) - 1000 / 453.6
Towing Capacity (lbs/kgs) - 1500 / 680.4
Fuel Capacity (gal/l) - 9 / 34.1
Engine Displacement to Weight (cc) - 0.31

DRIVE LINE
Driveline Brand - On-Demand™
Driveline Type - Selectable 4X2 / AWD
Number Of Driveline Modes - 2
Rear Unlocking Differential - Yes
Rear Solid Axle - No
Limited Slip Differential Location - Center
Differential Lock Location - Rear

• Green
• CVT
• 25,782 kms
• ATV
